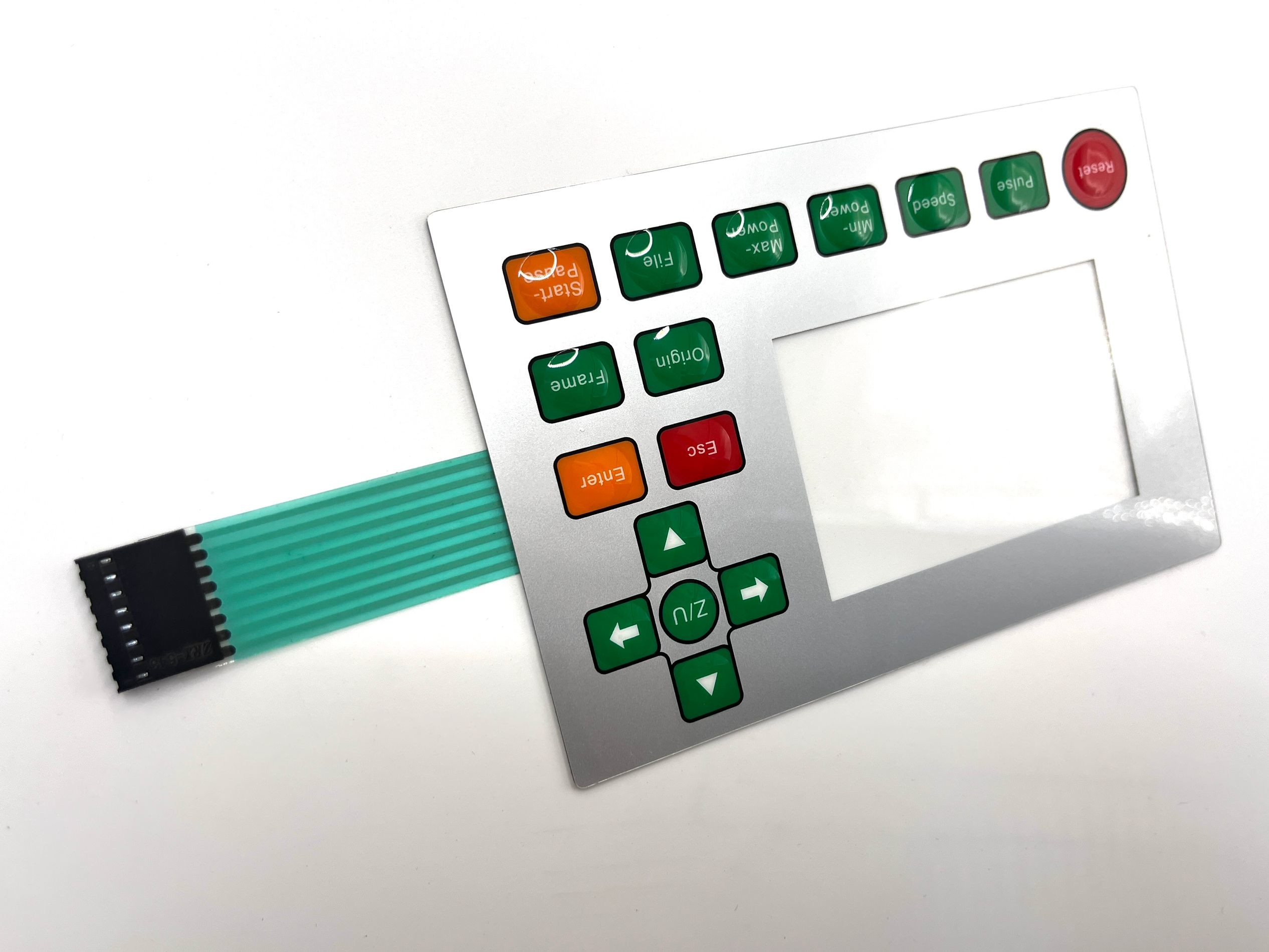

Screen Printing Touch Screen Switch Silver Conductive Circuit With 2.54MM Pitch
商品の詳細:
| Place of Origin: | DongGuan of China |
| ブランド名: | Taida |
| 証明: | ISO9001,SGS,ROHS,REACH,UL |
| モデル番号: | 20250430-03 |
お支払配送条件:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| 価格: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 32000 +pcs +a Month |
|
詳細情報 |
|||
| Material: | Polyester or Polycarbonate ,silicone or other request | Color: | Pantone, RAL CMYK ,RGB or samples |
|---|---|---|---|
| コネクトのピッチ: | 2.54MM | Adhesive: | #613 adheisve or other reuqest |
| コネクタタイプ: | ZIF,女性または男性接続器 | circuit options: | FPC ,silver plate ,or PCB board |
| ハイライト: | スクリーンプリント タッチスクリーン スイッチ,シルバー伝導回路タッチスクリーンスイッチ,2.54MM ピッチタッチスクリーンスイッチ |
||
製品の説明
Screen Printing Touch Screen Switch Silver Conductive Circuit With 2.54MM Pitch
Key Features
- Touch Sensitivity: Unlike traditional switches, touch screen switches respond to light taps, making them easier to use.
- Control Options: Many models offer dimming capabilities, scene control, and scheduling features, allowing for customized lighting experiences.
- Integration: Some touch screen switches can integrate with smart home systems, enabling voice control through platforms like Alexa.
Benefits
- Aesthetic Appeal: Touch screen switches often have a modern look that can enhance the decor of any room.
- User-Friendly: The intuitive interface makes it simple for anyone to operate, including children and elderly users.
- Advanced Features: Options like occupancy sensing and daylighting can help save energy and improve convenience.
Specification:
1)Material (for front or face overlay)
Polyester:
1.Highly versatile for embossing
2.Highly resistant to chemicals
3.Better durability
4.For internal and external use, UV resistance
Polycarbonate:
1.Different surface(Glossy, Matt) and thickness(From 0.12mm~2mm)
2. cost-effective in price
3.For internal and external use
2) Embossing
Rim embossing/pillow embossing/dimple embossing
Graphic overlays can be embossed in order to insert domes/LED, leave space for mechanical keys/LED and provide tactile indications and better tactile feeling.
3)Windows(for display function)
1. print different colors windows, As transparent grey/Red/green window for display
2. Clear/Transparent window for LCD display
2. Matt/semi-transparent window for LED
4)Keys/buttons
Tactile keys---with metal dome or poly dome
Non-tactile--silver printing dots with flat key
5) Embeded LEDs
Small, brilliant lights only about 0.02’’ in height. Avaliable in several vibrant colors.
LED colors: white, yellow, orange, green, red, or double colors LED.
6)Cable
It is an extension of the printed circuit and is used to communicate with your device.
7)Types of connector
1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector
8) EMI / RFI / ESD Shielding
use an aluminum foil shielding / a clear ITO electrical conductive polyester
9)Adhesive
mostly used are 3M-double-side glue
10)Backplate-
in aluminum, polycarbonate, acrylic, PCB
Product index:
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available
